PNK DP 065D double stage vane vacuum pumps
Excellent and reliable double - stage rotary vane vacuum pump
Motor power(50Hz): 2200w
Pumping speed (50/60Hz): 65m3/h/78m3/h
Limit vacuum: 3×10-3mbar
Would you like to know more？
Please contact us directly(China PRONOTEK）：
Download product sheet
PNK DP-D Series double stage rotary vane pumps Performance advantage
Specification parameters
| Technical parameter | Unit | Frequency | PNK DP 065D |
|---|---|---|---|
| Pumping speed | m3/h | 50 Hz | 65 |
| Limit partial pressure | mbar | 50 Hz | 4×10-4 |
| Limit total pressure | mbar | 50 Hz | 3×10-3 |
| Open limit total pressure | mbar | 50 Hz | 6×10-3 |
| Water vapor permitted tolerance | mbar | 50 Hz | 30 |
| Nomimal size | DN（mm） | 50 Hz | KF40 |
| Noise | (ENISO2151) | dB(A) | 58/60 |
| Oil filling level(Max./min.) | L | 5.0/4.6 | |
| Weight(not filled ) | kg | 83 | |
| Operating temperature(lowest/highest) | ℃ | 5/40 | |
| Power | W | 50 Hz | 2200（三相380V） |
| Total height of pump | mm | 370 | |
| Total length of pump | mm | 765 |
Mounting dimensions

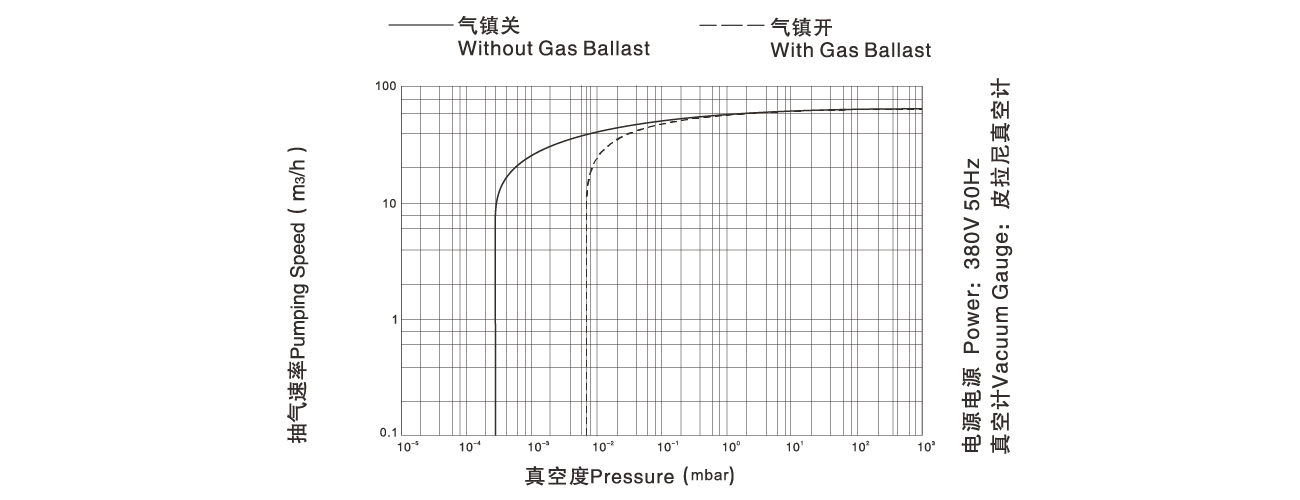

Performance curve
Parts
Download
