PNK PP 1400V Piston vacuum pump
Motor power(50Hz): 0.5Kw
Pumping speed (50Hz): 120L/min
Extreme vacuum limit: -92Kpa
Would you like to know more?
Please contact us directly(China PRONOTEK):
Download product sheet
PNK PP-V Series piston vacuum pumps Performance advantage
Specification parameters
Technical parameter | Unit | Frequency | PNK PP 1400V |
---|---|---|---|
Flow | L/min | 50 Hz | 120 |
Pressure | Kpa | 50 Hz | -92 |
Power | Kw | 50 Hz | 0.5 |
Rotate speed | min-1 | 1450 | |
Electric current | A | 50 Hz | 1.70 |
Voltage | V | 50 Hz | 210/235 |
Foot hole | mm | 6 | |
Temperature | ℃ | 5-40 | |
Noise | (ENISO2151) | dB(A) | 58 |
Weight | kg | 8.0 | |
Mounting dimensions | mm | L203*W112 | |
Overall dimension | mm | L244*W128*H186 |

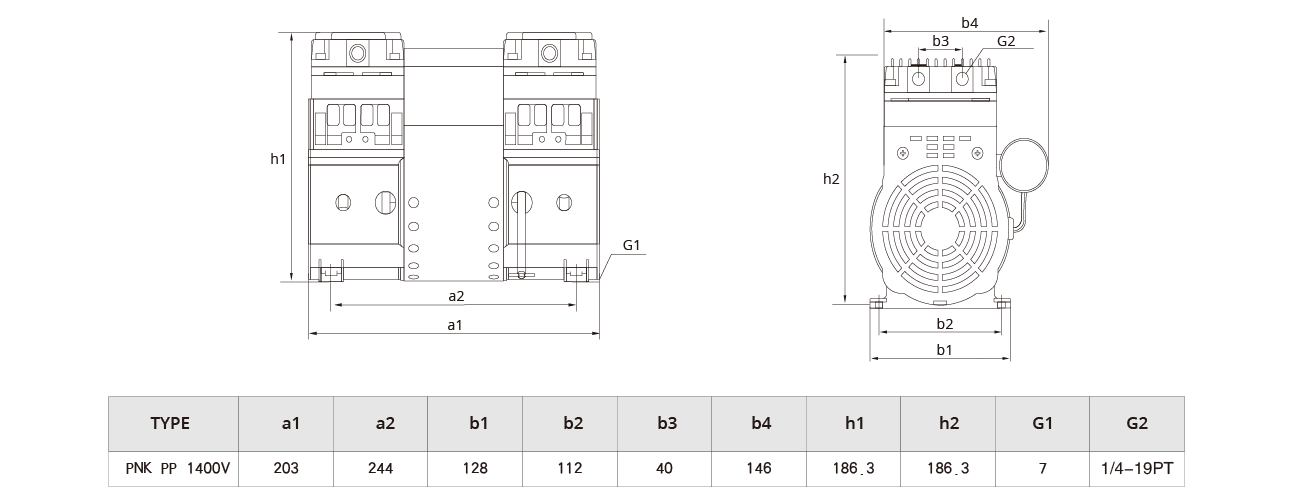

Mounting dimensions

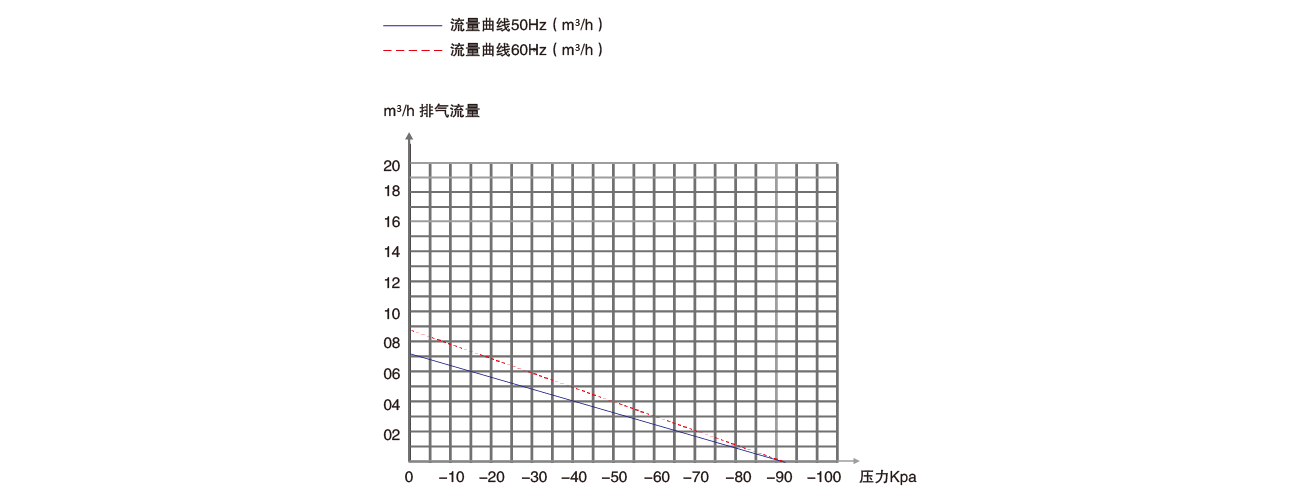

Performance curve
Parts
Download
